材質 | STKR(角型鋼管) |
---|---|
表面処理 | クロムメッキ |

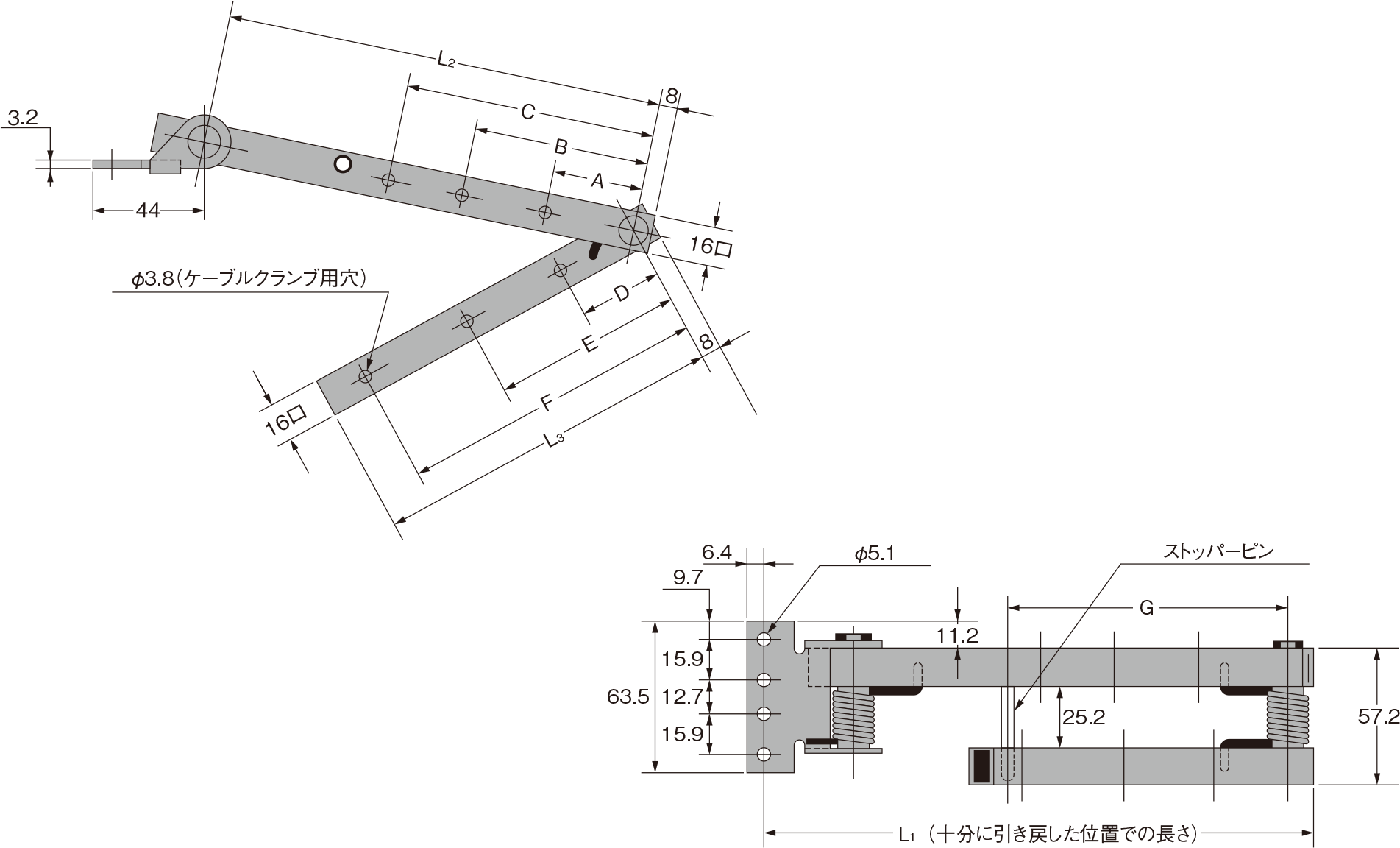

型式 | L1 | L2 | L3 | A | B | C | D | E | F | G | 製品重量(g) |
---|---|---|---|---|---|---|---|---|---|---|---|
CRS-25* | 427 | 381 | 355 | 68.3 | 182.6 | 296.9 | 68.3 | 195.3 | 322.3 | 330 | 708 |
CRS-25P1 | 376.6 | 331 | 306 | 132.6 | 246.9 | – | 146.3 | 273.3 | – | 280 | 629 |
CRS-25P2 | 296.6 | 251 | 226 | 52.6 | 166.9 | – | 66.3 | 193.3 | – | 200 | 526 |
CRS-25P3 | 276.6 | 231 | 206 | – | 146.9 | – | 46.3 | 173.3 | – | 180 | 495 |
CRS-25P4 | 246.6 | 201 | 176 | – | 116.9 | – | – | 143.3 | – | 150 | 456 |
CRS-25P5 | 226.6 | 181 | 156 | – | 96.9 | – | – | 123.3 | – | 130 | 425 |
