Conston spring can be used in varieties of applications, and the assembly methods may vary through.
Here, we describe basic cautious points when assembly by using SB type series for lifting up window
as an explanation example.

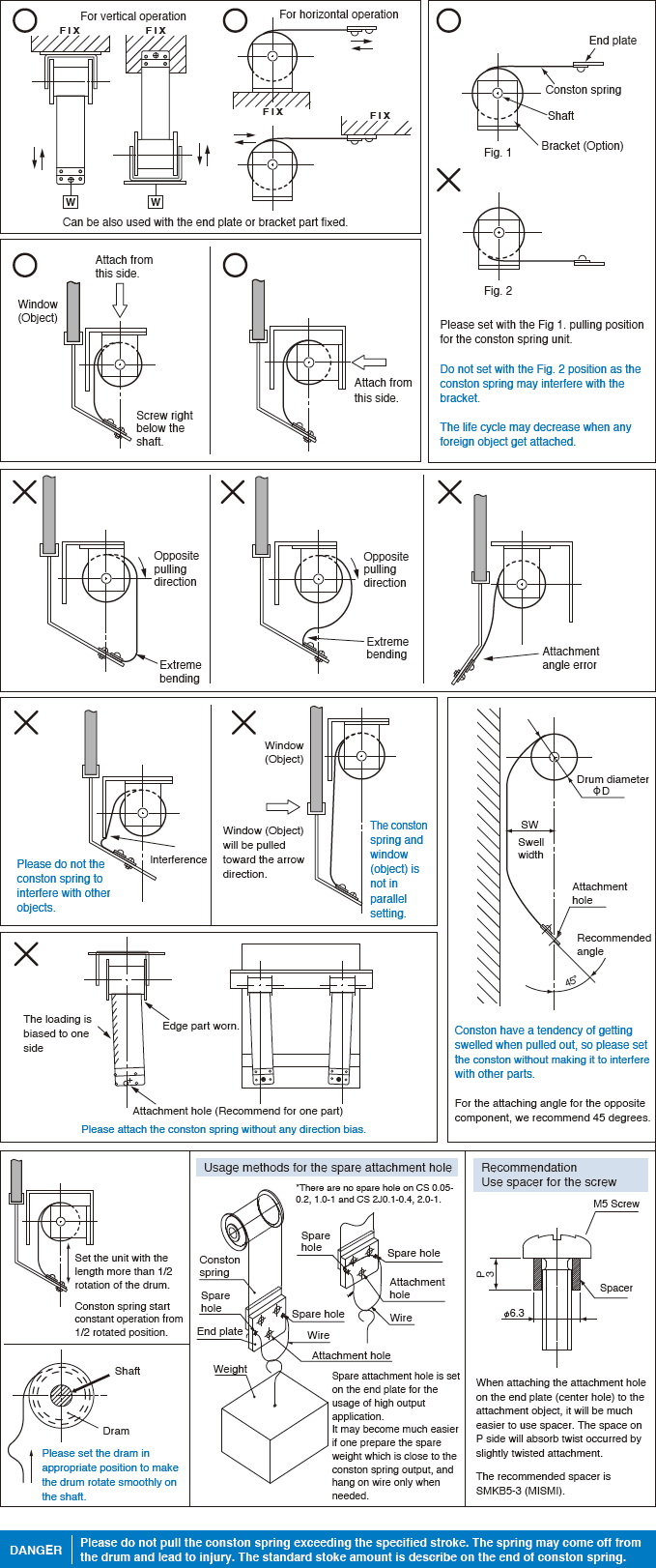

In this drawing, bracket is attached to conston spring, but please note that in normal type of conston
spring and CS type, there are no bracket attached. Please combine our optional items (SBR) or prepare
attachment components by yourself for setting the conston spring.
