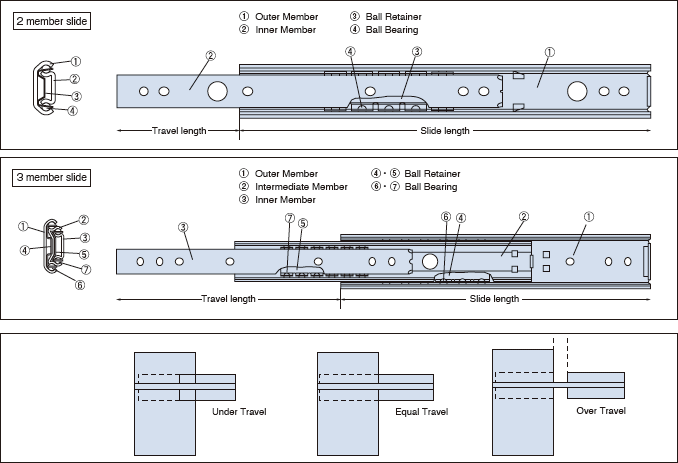

Ball Bearings produce smooth and precisive movement of slides.
Manufacturing in overseas with Japanese management achieves high quality slide with reasonable prices.
Various kinds of profile are available.
Provide most suitable slide to customer with different production methods by press forming or roll forming.
Finish
Electro zinc plate with clear.
Available in nickel chromate, black or yellow chromate by option.
Some profiles have stainless steel available.
Lubricant
Grease, for room temperature operation.
No additional grease is necessary as long as cycling of the chassis is not so frequent as to build u friction-caused heat which may affect the raceway.
Consult with us if slide shall be used under the high/low temperature, vacuum, high humidity condition.
Aluminum Slide Rails
Features
Strong aluminum alloy for extrusion realizes heavy loading.
Light weight. More than 1kg/pair lighter against steel slide of the same specifications.
Strong to load. Doesn't break against momentary static load of 2 times of load capacity.
