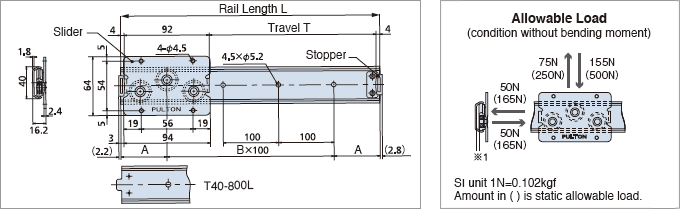

| PART No. | Length L mm |
Travel T mm |
A mm |
B | Weight (40g) |
|---|---|---|---|---|---|
| R40-300L | 300 | 200 | 50 | 2 | 400 |
| R40-350L | 350 | 250 | 25 | 3 | 440 |
| R40-400L | 400 | 300 | 50 | 3 | 480 |
| R40-450L | 450 | 350 | 25 | 4 | 520 |
| R40-500L | 500 | 400 | 50 | 4 | 560 |
| R40-550L | 550 | 450 | 25 | 5 | 590 |
| R40-600L | 600 | 500 | 50 | 5 | 630 |
| R40-650L | 650 | 550 | 25 | 6 | 670 |
| R40-700L | 700 | 600 | 50 | 6 | 700 |
| R40-750L | 750 | 650 | 25 | 7 | 740 |
| R40-800L | 800 | 700 | 50 | 7 | 770 |
| R40-900L | 900 | 800 | 50 | 8 | 850 |
| R40-1000L | 1000 | 900 | 50 | 9 | 920 |
| R40-1200L | 1200 | 1100 | 50 | 11 | 1070 |
| R40-1500L | 1500 | 1400 | 50 | 14 | 1280 |
| R40-1800L | 1800 | 1700 | 50 | 17 | 1490 |
| T40-800L | 800 | — | 50 | 7 | 600 |
| Part Name | Material | Surface Finish |
|---|---|---|
| Rail |
SPCC | Trivalent Chromate |
| Slider Plate | SPCC | Trivalent Chromate |
| Roller | SMF5040 | - |
