| PART No. | Length L |
Travel T |

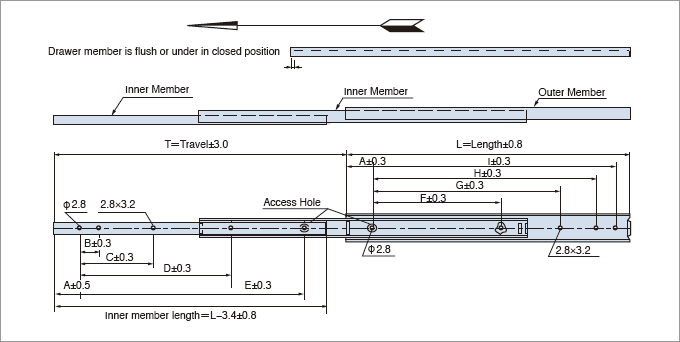

2100S Series Mounting holes (mm) | Slide weight (kg/pc) |
Load rating lbs. (kg)/pair |
||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | H | I | |||||
| 2100S-70 | 70 | 81.0 | 10 | ― | ― | ― | 50 | ― | ― | ― | 50 | 0.045 | 22 (10) |
| 2100S-100 | 100 | 116.0 | 10 | ― | 40 | ― | 80 | ― | ― | 40 | 80 | 0.065 | 22 (10) |
| 2100S-125 | 125 | 140.0 | 20 | ― | 40 | ― | 80 | ― | ― | 40 | 80 | 0.082 | 22 (10) |
| 2100S-150 | 150 | 165.0 | 20 | ― | 50 | ― | 110 | ― | ― | 50 | 110 | 0.098 | 22 (10) |
| 2100S-200 | 200 | 214.0 | 20 | 15 | 60 | ― | 160 | ― | 100 | 145 | 160 | 0.132 | 22 (10) |
| 2100S-250 | 250 | 263.0 | 20 | 15 | 60 | 160 | 210 | 50 | 145 | 195 | 210 | 0.165 | 22 (10) |
| 2100S-300 | 300 | 312.0 | 20 | 15 | 100 | 160 | 260 | 100 | 160 | 245 | 260 | 0.200 | 22 (10) |
