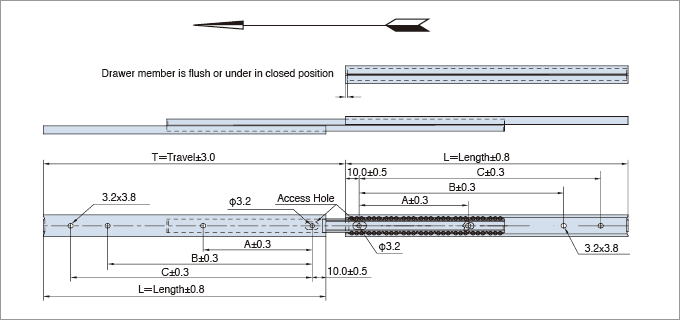

| PART No. | Length L |
Travel T |
1600S Series Mounting holes (mm) | Slide weight (kg/pc) |
Load rating lbs. (kg)/pair |
||
|---|---|---|---|---|---|---|---|
| A | B | C | |||||
| 1600S-70 | 70 | 80.6 | ― | ― | 50 | 0.027 | 22 (10) |
| 1600S-100 | 100 | 115.2 | ― | 40 | 70 | 0.037 | 22 (10) |
| 1600S-125 | 125 | 139.8 | ― | 50 | 95 | 0.046 | 22 (10) |
| 1600S-150 | 150 | 164.4 | ― | 60 | 120 | 0.057 | 22 (10) |
| 1600S-200 | 200 | 213.6 | ― | 95 | 170 | 0.076 | 22 (10) |
| 1600S-250 | 250 | 262.8 | 80 | 150 | 220 | 0.095 | 22 (10) |
| 1600S-300 | 300 | 300 | 95 | 180 | 270 | 0.115 | 22 (10) |
