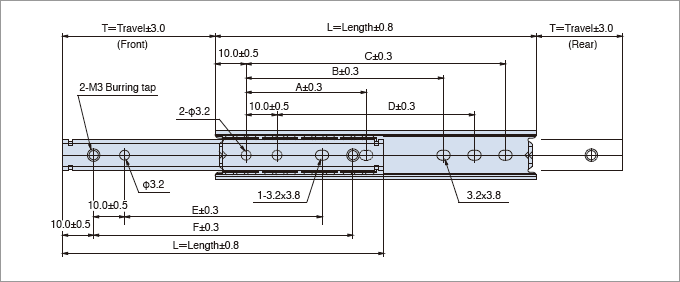

| PART No. | Length L |
Travel T |
1595SSeries Mounting holes (mm) | Slide weight (kg/pc) |
Load rating lbs. (kg)/pair |
|||||
|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | |||||
| 1595S-70 | 70 | 15.4 | ― | ― | 50 | 30 | 30 | 50 | 0.03 | 22 (10) |
| 1595S-100 | 100 | 20 | ― | ― | 80 | 60 | 60 | 80 | 0.04 | 22 (10) |
| 1595S-125 | 125 | 32.3 | ― | ― | 105 | 85 | 85 | 105 | 0.05 | 22 (10) |
| 1595S-150 | 150 | 44.6 | ― | ― | 130 | 110 | 110 | 130 | 0.06 | 22 (10) |
| 1595S-200 | 200 | 69.2 | 50 | 130 | 180 | 160 | 160 | 180 | 0.08 | 22 (10) |
