| PART No. | Length L |
Travel T |

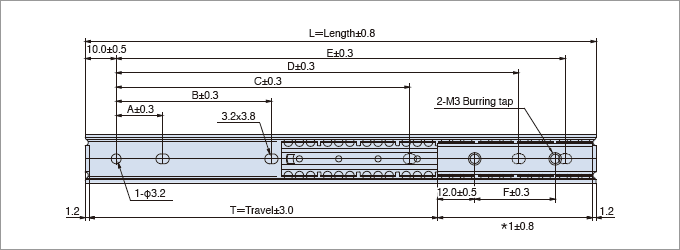

1590S Series Mounting holes (mm) | Slide weight (kg/pc) |
||||||
|---|---|---|---|---|---|---|---|---|---|---|
| *1 | A | B | C | D | E | F | ||||
| 1590S-70 | 70 | 29.6 | 38 | ― | ― | ― | ― | 50 | 14 | 0.025 |
| 1590S-100 | 100 | 59.6 | 38 | 15 | ― | ― | 65 | 80 | 14 | 0.030 |
| 1590S-125 | 125 | 84.6 | 38 | 15 | ― | ― | 90 | 105 | 14 | 0.040 |
| 1590S-150 | 150 | 109.6 | 38 | 15 | ― | ― | 115 | 130 | 14 | 0.045 |
| 1590S-200 | 200 | 147.6 | 50 | 15 | ― | ― | 165 | 180 | 26 | 0.060 |
| 1590S-300 | 300 | 247.6 | 50 | 15 | 90 | 190 | 265 | 280 | 26 | 0.080 |
| 1590S-400 | 400 | 347.6 | 50 | 15 | 130 | 250 | 365 | 380 | 26 | 0.105 |
