| PART No. | Length L |
Travel T |

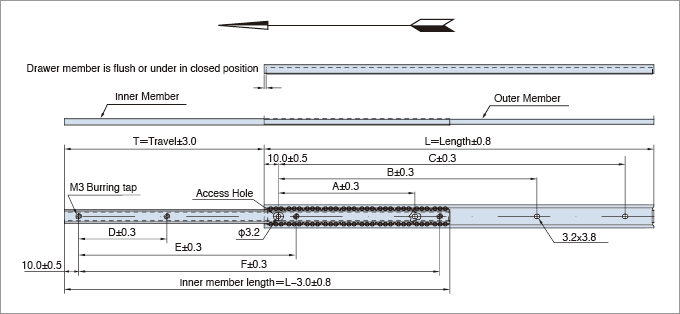

1500S Series Mounting holes (mm) | Slide weight (kg/pc) |
Load rating lbs. (kg)/pair |
|||||
|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | |||||
| 1500S-70 | 70 | 39.3 | ― | ― | 50 | ― | ― | 50 | 0.027 | 22 (10) |
| 1500S-100 | 100 | 69.3 | ― | 40 | 70 | 40 | ― | 80 | 0.037 | 22 (10) |
| 1500S-125 | 125 | 81.6 | ― | 50 | 95 | 50 | ― | 105 | 0.046 | 22 (10) |
| 1500S-150 | 150 | 93.9 | ― | 60 | 120 | 65 | ― | 130 | 0.057 | 22 (10) |
| 1500S-200 | 200 | 118.5 | ― | 95 | 170 | 90 | ― | 180 | 0.076 | 22 (10) |
| 1500S-250 | 250 | 143.1 | 80 | 150 | 220 | 80 | 160 | 230 | 0.095 | 22 (10) |
| 1500S-300 | 300 | 167.7 | 95 | 180 | 270 | 90 | 180 | 280 | 0.115 | 22 (10) |
