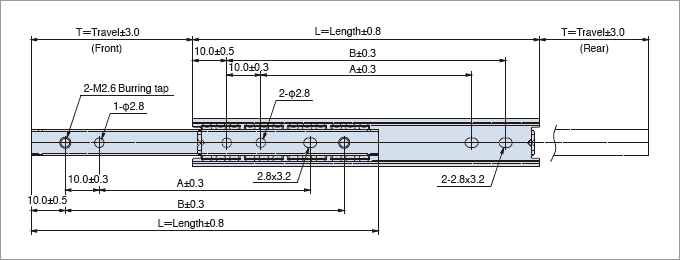

| PART No. | Length L |
Travel T |
1395S Series Mounting holes (mm) | Slide weight (kg/pc) |
Load rating lbs. (kg)/pair |
|
|---|---|---|---|---|---|---|
| A | B | |||||
| 1395S-70 | 70 | 17.2 | 30 | 50 | 0.020 | 22 (10) |
| 1395S-100 | 100 | 21.8 | 60 | 80 | 0.030 | 22 (10) |
| 1395S-125 | 125 | 34.1 | 85 | 105 | 0.035 | 22 (10) |
| 1395S-150 | 150 | 59.1 | 110 | 130 | 0.045 | 22 (10) |
