1390S Series
Stainless  RoHS Compliant

Specification

  • Material / SUS304
  • Slide space / 6.4mm, Height / 14.0mm
  • Mounting hole / M2.6 burring tap, φ2.8, φ2.8×3.2
  • Common in L / R

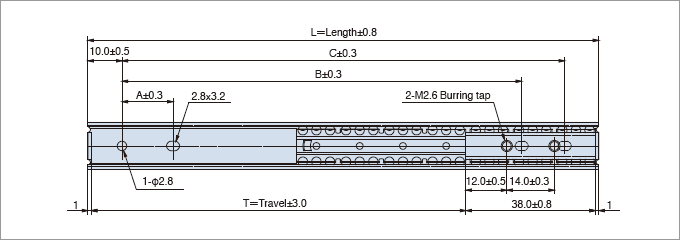

fig

Rail Dimension

PART No. Length
L		 Travel
T		 1390S Series Mounting holes (mm) Slide
weight
(kg/pc)
A B C
1390S-70 70 30 ― ― 50 0.020
1390S-100 100 60 15 65 80 0.025
1390S-125 125 85 15 90 105 0.030
1390S-150 150 110 15 115 130 0.035
【CAUTION】Length of Screw
