| PART No. | Length L |
Travel T |

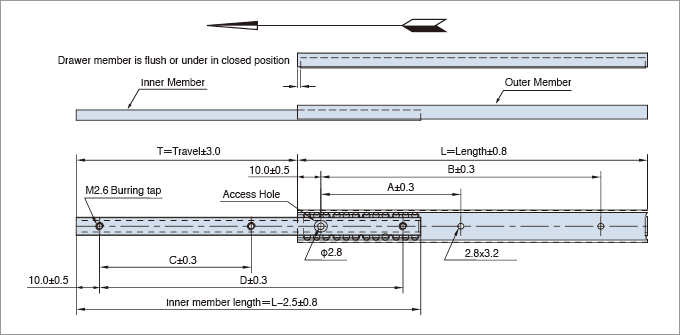

1300S Series Mounting holes (mm) | Slide weight (kg/pc) |
Load rating lbs. (kg)/pair |
|||
|---|---|---|---|---|---|---|---|---|
| A | B | C | D | |||||
| 1300S-70 | 70 | 40.1 | ― | 50 | ― | 50 | 0.020 | 22 (10) |
| 1300S-100 | 100 | 70.1 | 40 | 70 | 40 | 80 | 0.029 | 22 (10) |
| 1300S-125 | 125 | 82.4 | 50 | 95 | 50 | 105 | 0.035 | 22 (10) |
| 1300S-150 | 150 | 94.7 | 60 | 120 | 65 | 130 | 0.040 | 22 (10) |
