| PART No. | Length L |
Travel T |

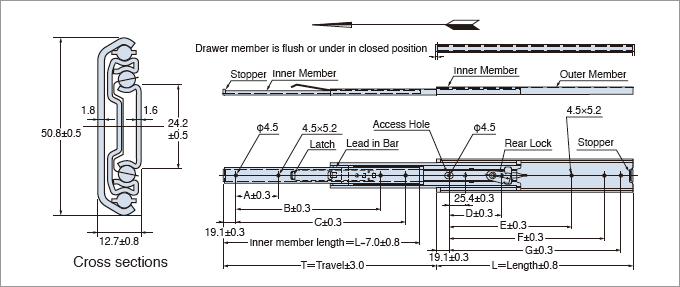

7080 Series Mounting holes (mm) | Slide weight (kg/pc) |
Number in a box |
Load rating lbs. (kg)/pair |
||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | ||||||
| 7080−12 | 304.8(12") | 330.2(13") | 76.2 | − | 228.6 | − | 139.7 | 241.3 | 266.7 | 0.70 | 20 | 139(63) |
| 7080−14 | 355.6(14") | 381.0(15") | 101.6 | − | 279.4 | 101.6 | 215.9 | 292.1 | 317.5 | 0.82 | 20 | 141(64) |
| 7080−16 | 406.4(16") | 431.8(17") | 114.3 | − | 330.2 | 127.0 | 241.3 | 342.9 | 368.3 | 0.93 | 16 | 146(66) |
| 7080−18 | 457.2(18") | 482.6(19") | 139.7 | 317.5 | 381.0 | 139.7 | 279.4 | 393.7 | 419.1 | 1.04 | 16 | 148(67) |
| 7080−20 | 508.0(20") | 533.4(21") | 152.4 | 342.9 | 431.8 | 152.4 | 317.5 | 444.5 | 469.9 | 1.16 | 14 | 155(70) |
| 7080−22 | 558.8(22") | 584.2(23") | 177.8 | 393.7 | 482.6 | 177.8 | 342.9 | 495.3 | 520.7 | 1.27 | 14 | 159(72) |
| 7080−24 | 609.6(24") | 635.0(25") | 190.5 | 419.1 | 533.4 | 190.5 | 381.0 | 546.1 | 571.5 | 1.38 | 10 | 152(69) |
| 7080−26 | 660.4(26") | 685.8(27") | 203.2 | 444.5 | 584.2 | 203.2 | 419.1 | 596.9 | 622.3 | 1.49 | 10 | 141(64) |
| 7080−28 | 711.2(28") | 736.6(29") | 228.6 | 457.2 | 635.0 | 228.6 | 444.5 | 647.7 | 673.1 | 1.60 | 10 | 137(62) |
