| PART No. | Length L |
Travel T |

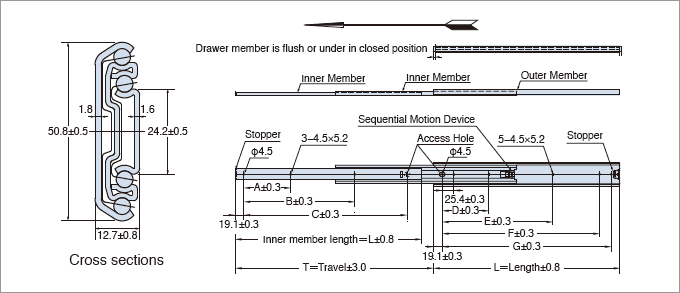

7000 Series Mounting holes (mm) | Slide weight (kg/pc) |
Number in a box |
Load rating lbs. (kg)/pair |
||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | ||||||
| 7000−12 | 304.8(12") | 330.2(13") | 76.2 | 177.8 | 254.0 | 88.9 | 177.8 | 241.3 | 266.7 | 0.67 | 20 | 139(63) |
| 7000−14 | 355.6(14") | 381.0(15") | 101.6 | 215.9 | 304.8 | 101.6 | 215.9 | 292.1 | 317.5 | 0.78 | 20 | 141(64) |
| 7000−16 | 406.4(16") | 431.8(17") | 114.3 | 241.3 | 355.6 | 127.0 | 241.3 | 342.9 | 368.3 | 0.89 | 16 | 146(66) |
| 7000−18 | 457.2(18") | 482.6(19") | 139.7 | 279.4 | 406.4 | 139.7 | 279.4 | 393.7 | 419.1 | 1.00 | 16 | 148(67) |
| 7000−20 | 508.0(20") | 533.4(21") | 152.4 | 317.5 | 457.2 | 152.4 | 317.5 | 444.5 | 469.9 | 1.12 | 14 | 155(70) |
| 7000−22 | 558.8(22") | 584.2(23") | 177.8 | 355.6 | 508.0 | 177.8 | 342.9 | 495.3 | 520.7 | 1.23 | 14 | 159(72) |
| 7000−24 | 609.6(24") | 635.0(25") | 190.5 | 381.0 | 558.8 | 190.5 | 381.0 | 546.1 | 571.5 | 1.34 | 10 | 152(69) |
| 7000−26 | 660.4(26") | 685.8(27") | 203.2 | 419.1 | 609.6 | 203.2 | 419.1 | 596.9 | 622.3 | 1.45 | 10 | 141(64) |
| 7000−28 | 711.2(28") | 736.6(29") | 228.6 | 457.2 | 660.4 | 228.6 | 444.5 | 647.7 | 673.1 | 1.56 | 10 | 137(62) |
