| PART No. | Length L |

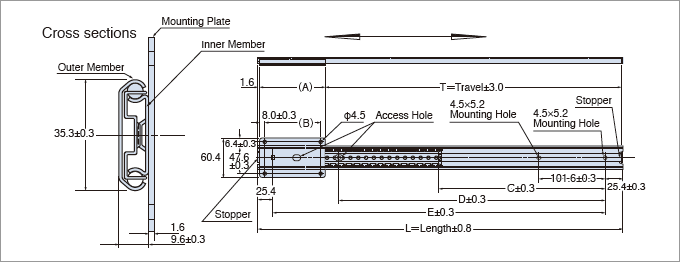

330LMM Series Mounting holes (mm) | Slide weight (kg/pc) |
||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | C | D | E | ||||||||
| 76.2 | 101.6 | 127.0 | 152.4 | 177.8 | 203.2 | ||||||
| B | |||||||||||
| 60.2 | 85.6 | 111.0 | 136.4 | 161.8 | 187.2 | ||||||
| Travel T | |||||||||||
| 330LMM−12 | 304.8(12") | 225.4 | 200.0 | 174.6 | 149.2 | 123.8 | 98.4 | − | 152.4 | 254 | 0.43 |
| 330LMM−14 | 355.6(14") | 276.2 | 250.8 | 225.4 | 200.0 | 174.6 | 149.2 | − | 203.2 | 304.8 | 0.46 |
| 330LMM−16 | 406.4(16") | 327.0 | 301.6 | 276.2 | 250.8 | 225.4 | 200.0 | − | 254.0 | 355.6 | 0.49 |
| 330LMM−18 | 457.2(18") | 377.8 | 352.4 | 327.0 | 301.6 | 276.2 | 250.8 | 203.2 | 304.8 | 406.4 | 0.52 |
| 330LMM−20 | 508.0(20") | 428.6 | 403.2 | 377.8 | 352.4 | 327.0 | 301.6 | 228.6 | 355.6 | 457.2 | 0.55 |
| 330LMM−22 | 558.8(22") | 479.4 | 454.0 | 428.6 | 403.2 | 377.8 | 352.4 | 254.0 | 406.4 | 508.0 | 0.58 |
| 330LMM−24 | 609.6(24") | 530.2 | 504.8 | 479.4 | 454.0 | 428.6 | 403.2 | 279.4 | 457.2 | 558.8 | 0.61 |
| 330LMM−26 | 660.4(26") | 581.0 | 555.6 | 530.2 | 504.8 | 479.4 | 454.0 | 304.8 | 508.0 | 609.6 | 0.64 |
| 330LMM−28 | 711.2(28") | 631.8 | 606.4 | 581.0 | 555.6 | 530.2 | 504.8 | 330.2 | 558.8 | 660.4 | 0.67 |
