| PART No. | Length L |
Travel T |

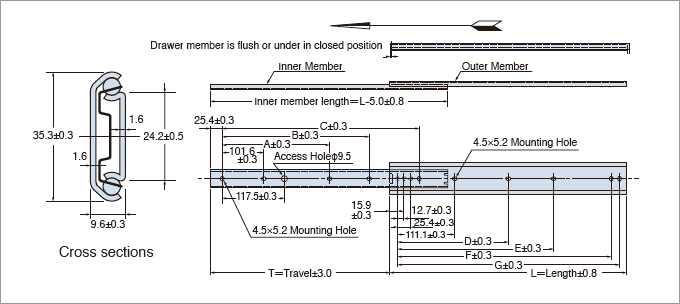

330 Series Mounting holes (mm) | Slide weight (kg/pc) |
Number in a box |
Load rating lbs. (kg)/pair |
||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | ||||||
| 330−12 (330FD−12) |
304.8(12") | 228.6(9") | − | 152.4 | 254.0 | − | 149.2 | 260.4 | 273.1 | 0.38 | 60 | 71(32) |
| 330−14 (330FD−14) |
355.6(14") | 279.4(11") | − | 203.2 | 304.8 | − | 200.0 | 311.2 | 323.9 | 0.44 | 60 | 71(32) |
| 330−16 (330FD−16) |
406.4(16") | 304.8(12") | − | 254.0 | 355.6 | − | 250.8 | 362.0 | 374.7 | 0.50 | 40 | 79(36) |
| 330−18 (330FD−18) |
457.2(18") | 330.2(13") | 203.2 | 304.8 | 406.4 | 212.7 | 301.6 | 412.8 | 425.5 | 0.57 | 40 | 88(40) |
| 330−20 (330FD−20) |
508.0(20") | 381.0(15") | 228.6 | 355.6 | 457.2 | 238.1 | 352.4 | 463.6 | 476.3 | 0.63 | 36 | 88(40) |
| 330−22 (330FD−22) |
558.8(22") | 406.4(16") | 254.0 | 406.4 | 508.0 | 263.5 | 403.2 | 514.4 | 527.1 | 0.70 | 36 | 79(36) |
| 330−24 (330FD−24) |
609.6(24") | 431.8(17") | 279.4 | 457.2 | 558.8 | 288.9 | 454.0 | 565.2 | 577.9 | 0.76 | 18 | 71(32) |
| 330−26 (330FD−26) |
660.4(26") | 482.6(19") | 304.8 | 508.0 | 609.6 | 314.3 | 504.8 | 616 | 628.7 | 0.82 | 18 | 60(27) |
| 330−28 (330FD−28) |
711.2(28") | 508.0(20") | 330.2 | 558.8 | 660.4 | 339.7 | 555.6 | 666.8 | 679.5 | 0.89 | 18 | 55(25) |
