| PART No. | Length L |
Travel T |

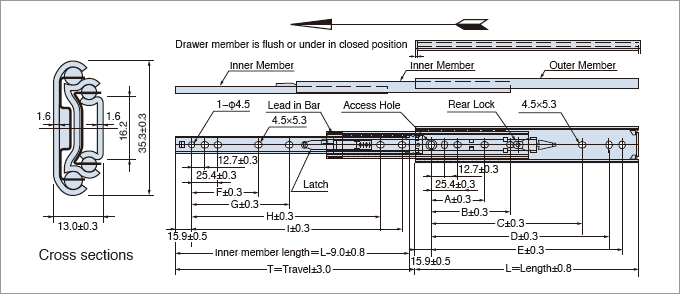

2800 Series Mounting holes (mm) | Slide weight (kg/pc) |
Number in a box |
Load rating lbs. (kg)/pair |
|||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | H | I | |||||||
| 2880N−8 | 203.2(8") | 200(7.9") | 111.1 | − | − | 158.7 | 171.4 | 50.8 | − | − | 152.4 | 0.29 | 30 | 66(30) | |
| 2880N−10 | 254.0(10") | 250(9.8") | 111.1 | − | − | 209.5 | 222.2 | 101.6 | − | − | 203.2 | 0.37 | 30 | 71(32) | |
| 2880N−12 | 304.8(12") | 324(12.8") | 111.1 | − | − | 260.3 | 273.0 | 101.6 | − | − | 254.0 | 0.44 | 30 | 71(32) | |
| 2880N−14 | 355.6(14") | 378(14.9") | 111.1 | − | 200.0 | 311.1 | 323.8 | 101.6 | − | − | 304.8 | 0.52 | 30 | 75(34) | |
| 2880N−16 | 406.4(16") | 429(16.9") | 111.1 | − | 250.8 | 361.9 | 374.6 | 101.6 | − | − | 355.6 | 0.60 | 30 | 75(34) | |
| 2880N−18 | 457.2(18") | 487(19.2") | 111.1 | 212.7 | 301.6 | 412.7 | 425.4 | 101.6 | 207.7 | − | 406.4 | 0.68 | 30 | 75(34) | |
| 2880N−20 | 508.0(20") | 530(20.9") | 111.1 | 238.1 | 352.4 | 463.5 | 476.2 | 101.6 | 233.1 | 355.6 | 457.2 | 0.75 | 30 | 75(34) | |
| 2880N−22 | 558.8(22") | 581(22.9") | 111.1 | 263.5 | 403.2 | 514.3 | 527.0 | 101.6 | 258.5 | 406.4 | 508.0 | 0.84 | 30 | 68(31) | |
| 2880N−24 | 609.6(24") | 632(24.9") | 111.1 | 288.9 | 454.0 | 565.1 | 577.8 | 101.6 | 283.9 | 457.2 | 558.8 | 0.91 | 16 | 66(30) | |
