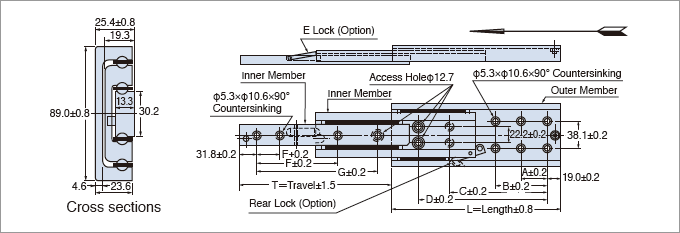

| PART No. | Length L |
Travel T |
250 Series Mounting holes (mm) | Slide weight (kg/pc) |
||||||
|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | ||||
| 350−12 | 304.8(12") | 279.4(11") | 101.6 | − | − | 254.0 | − | 127.0 | 228.6 | 342(155) |
| 350−14 | 355.6(14") | 330.2(13") | 127.0 | − | − | 304.8 | 76.2 | 177.8 | 279.4 | 353(160) |
| 350−16 | 406.4(16") | 381.0(15") | 76.2 | 152.4 | 254.0 | 355.6 | 101.6 | 203.2 | 330.2 | 364(165) |
| 350−18 | 457.2(18") | 431.8(17") | 76.2 | 152.4 | 279.4 | 406.4 | 127.0 | 254.0 | 381.0 | 371(168) |
| 350−20 | 508.0(20") | 482.6(19") | 101.6 | 203.2 | 330.2 | 457.2 | 127.0 | 279.4 | 431.8 | 375(170) |
| 350−22 | 558.8(22") | 533.4(21") | 101.6 | 203.2 | 355.6 | 508.0 | 152.4 | 304.8 | 482.6 | 375(170) |
| 350−24 | 609.6(24") | 584.2(23") | 127.0 | 254.0 | 406.4 | 558.8 | 177.8 | 355.6 | 533.4 | 371(168) |
| 350−26 | 660.4(26") | 635.0(25") | 127.0 | 254.0 | 431.8 | 609.6 | 177.8 | 381.0 | 584.2 | 364(165) |
| 350−28 | 711.2(28") | 685.8(27") | 152.4 | 304.8 | 482.6 | 660.4 | 203.2 | 406.4 | 635.0 | 353(160) |
| 350−30 | 762.0(30") | 736.6(29") | 152.4 | 304.8 | 508.0 | 711.2 | 228.6 | 457.2 | 685.8 | 349(158) |
| 350−32 | 812.8(32") | 787.4(31") | 177.8 | 355.6 | 558.8 | 762.0 | 228.6 | 482.6 | 736.6 | 344(156) |
| 350−34 | 863.6(34") | 838.2(33") | 177.8 | 355.6 | 584.2 | 812.8 | 254.0 | 508.0 | 787.4 | 340(154) |
| 350−36 | 914.4(36") | 889.0(35") | 203.2 | 406.4 | 635.0 | 863.6 | 279.4 | 558.8 | 838.2 | 331(150) |
