| PART No. | Length L |
Travel T |

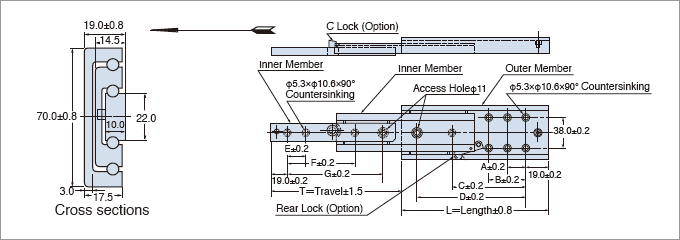

250 Series Mounting holes (mm) | Slide weight (kg/pc) |
||||||
|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | ||||
| 250−12 | 304.8(12") | 330.2(13") | 98.0 | − | − | 254.0 | 50.8 | 177.8 | 254.0 | 230(104) |
| 250−14 | 355.6(14") | 381.0(15") | 127.0 | − | − | 304.8 | 76.2 | 203.2 | 304.8 | 234(106) |
| 250−16 | 406.4(16") | 431.8(17") | 76.2 | 152.4 | 254.0 | 355.6 | 101.6 | 228.6 | 355.6 | 243(110) |
| 250−18 | 457.2(18") | 482.6(19") | 76.2 | 152.4 | 279.4 | 406.4 | 127.0 | 279.4 | 406.4 | 254(115) |
| 250−20 | 508.0(20") | 533.4(21") | 98.0 | 203.2 | 330.2 | 457.2 | 152.4 | 304.8 | 457.2 | 260(118) |
| 250−22 | 558.8(22") | 584.2(23") | 98.0 | 203.2 | 355.6 | 508.0 | 177.8 | 330.2 | 508.0 | 260(118) |
| 250−24 | 609.6(24") | 635.0(25") | 127.0 | 254.0 | 406.4 | 558.8 | 177.8 | 381.0 | 558.8 | 256(116) |
| 250−26 | 660.4(26") | 685.8(27") | 127.0 | 254.0 | 431.8 | 609.6 | 203.2 | 406.4 | 609.6 | 238(108) |
| 250−28 | 711.2(28") | 736.6(29") | 152.4 | 304.8 | 482.6 | 660.4 | 228.6 | 431.8 | 660.4 | 221(100) |
| 250−30 | 762.0(30") | 787.4(31") | 152.4 | 304.8 | 508.0 | 711.2 | 228.6 | 482.6 | 711.2 | 208(94) |
| 250−32 | 812.8(32") | 838.2(33") | 177.8 | 355.6 | 558.8 | 762.0 | 254.0 | 508.0 | 762.0 | 199(90) |
| 250−34 | 863.6(34") | 889.0(35") | 177.8 | 355.6 | 584.2 | 812.8 | 279.4 | 533.4 | 812.8 | 192(87) |
| 250−36 | 914.4(36") | 939.8(37") | 203.2 | 406.4 | 635.0 | 863.6 | 279.4 | 584.2 | 863.6 | 188(85) |
