| PART No. | Length L |
Travel T |

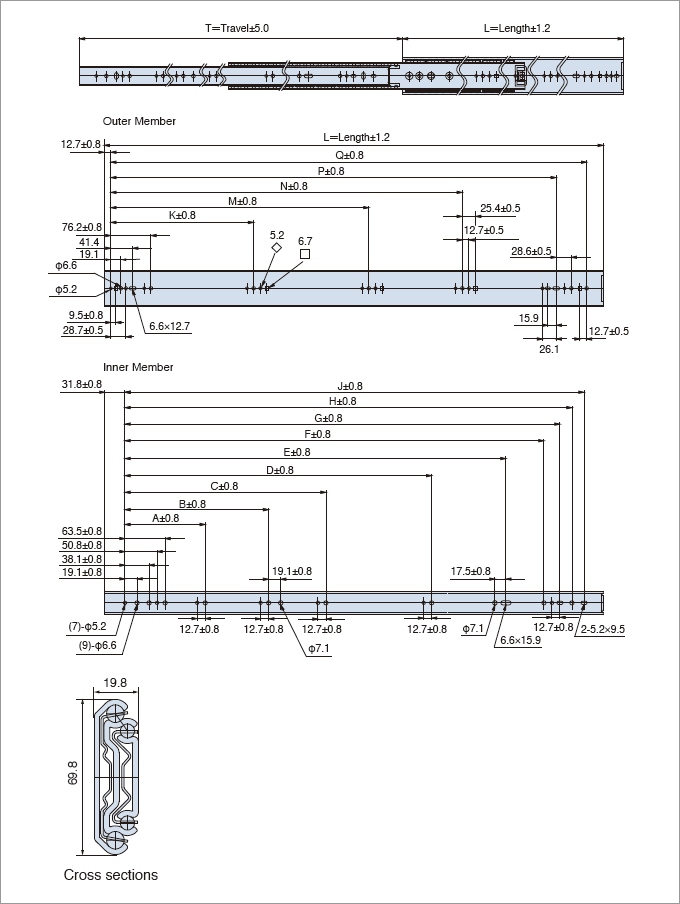

6900 Series Mounting holes (mm) | Slide weight (kg/pc) |
Number in a box |
Load rating lbs. (kg)/pair |
|||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | H | J | K | M | N | P | Q | ||||||
| 6900−20 | 508.0(20") | 503.0 | 127.0 | 190.5 | ― | ― | 296.9 | 357.1 | 382.5 | 401.6 | 420.6 | ― | ― | ― | 406.4 | 463.6 | 2.40 | 6 | 397(180) |
| 6900−22 | 558.8(22") | 554.0 | 127.0 | 190.5 | ― | ― | 347.7 | 407.9 | 433.3 | 452.4 | 471.4 | ― | ― | ― | 457.2 | 514.4 | 2.65 | 6 | 397(180) |
| 6900−24 | 609.6(24") | 605.0 | 127.0 | 190.5 | ― | ― | 398.5 | 458.7 | 484.1 | 503.2 | 522.2 | ― | ― | ― | 508 | 565.2 | 2.90 | 6 | 397(180) |
| 6900−26 | 660.4(26") | 655.0 | 127.0 | 190.5 | ― | ― | 449.3 | 509.5 | 534.9 | 554.0 | 573.0 | ― | ― | ― | 558.8 | 616.0 | 3.01 | 6 | 397(180) |
| 6900−28 | 711.2(28") | 706.0 | 127.0 | 190.5 | ― | ― | 500.1 | 560.3 | 585.7 | 604.8 | 623.8 | 393.7 | ― | ― | 609.6 | 666.8 | 3.50 | 4 | 397(180) |
| 6900−30 | 762.0(30") | 757.0 | 127.0 | 190.5 | 368.3 | ― | 550.9 | 611.1 | 636.5 | 655.6 | 674.6 | 234.9 | ― | 501.7 | 660.4 | 717.6 | 3.60 | 4 | 397(180) |
| 6900−32 | 812.8(32") | 808.0 | 127.0 | 190.5 | 368.3 | ― | 601.7 | 661.9 | 687.3 | 706.4 | 725.4 | 234.9 | 393.7 | 552.5 | 711.2 | 768.4 | 3.85 | 4 | 397(180) |
| 6900−34 | 863.6(34") | 859.0 | 127.0 | 190.5 | 368.3 | 469.9 | 652.5 | 712.7 | 738.1 | 757.2 | 776.2 | 234.9 | 419.1 | 603.3 | 762.0 | 819.2 | 4.05 | 4 | 397(180) |
| 6900−36 | 914.4(36") | 909.0 | 127.0 | 190.5 | 368.3 | 520.7 | 703.3 | 763.5 | 788.9 | 808.0 | 827.0 | 234.9 | 444.5 | 654.1 | 812.8 | 870.0 | 4.30 | 4 | 397(180) |
| 6900−38 | 965.2(38") | 959.0 | 127.0 | 190.5 | 368.3 | 520.7 | 754.1 | 814.3 | 839.7 | 858.8 | 877.8 | 234.9 | 469.9 | 704.9 | 863.6 | 920.8 | 4.55 | 4 | 397(180) |
