| PART No. | Length L |
Travel T |

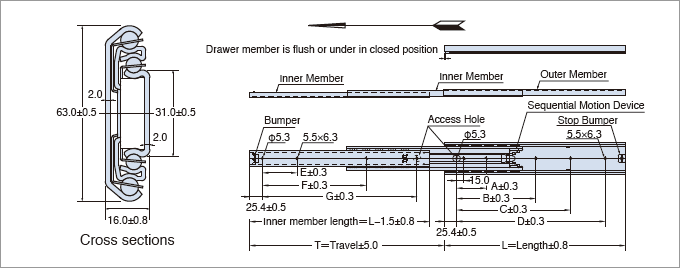

5800 Series Mounting holes (mm) | Slide weight (kg/pc) |
Number in a box |
Load rating lbs. (kg)/pair |
||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | ||||||
| 5800−12 | 304.8(12") | 331.0(13") | 127.0 | − | − | 254.0 | 84.6 | 169.4 | 254.0 | 0.97 | 12 | 177(80) |
| 5800−14 | 355.6(14") | 381.0(15") | 152.4 | − | − | 304.8 | 101.6 | 203.2 | 304.8 | 1.1 | 12 | 199(90) |
| 5800−16 | 406.4(16") | 432.0(17") | 88.9 | 177.8 | 266.7 | 355.6 | 118.6 | 237.0 | 355.6 | 1.36 | 12 | 241(109) |
| 5800−18 | 457.2(18") | 483.0(19") | 101.6 | 203.2 | 304.8 | 406.4 | 135.4 | 271.0 | 406.4 | 1.5 | 12 | 254(115) |
| 5800−20 | 508.0(20") | 534.0(21") | 114.3 | 228.6 | 342.9 | 457.2 | 152.4 | 304.8 | 457.2 | 1.67 | 12 | 276(125) |
| 5800−22 | 558.8(22") | 585.0(23") | 127.0 | 254.0 | 381.0 | 508.0 | 169.4 | 338.6 | 508.0 | 1.84 | 12 | 276(125) |
| 5800−24 | 609.6(24") | 635.0(25") | 139.7 | 279.4 | 419.1 | 558.8 | 186.2 | 372.6 | 558.8 | 2.00 | 6 | 276(125) |
| 5800−26 | 660.4(26") | 686.0(27") | 152.4 | 304.8 | 457.2 | 609.6 | 203.2 | 406.4 | 609.6 | 2.21 | 6 | 298(135) |
| 5800−28 | 711.2(28") | 737.0(29") | 165.1 | 330.2 | 495.3 | 660.4 | 220.2 | 440.2 | 660.4 | 2.33 | 6 | 276(125) |
| 5800−30 | 762.0(30") | 788.0(31") | 177.8 | 355.6 | 533.4 | 711.2 | 237.0 | 474.2 | 711.2 | 2.36 | 6 | 221(100) |
