| PART No. | Length L |
Travel T |

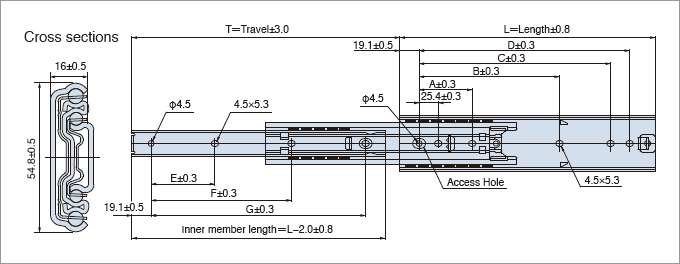

5500 Series Mounting holes (mm) | Slide weight (kg/pc) |
Number in a box |
Load rating lbs. (kg)/pair |
||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | ||||||
| 5500−12 | 304.8(12") | 330(13") | 76.2 | 190.5 | 241.3 | 260.3 | 76.2 | 177.8 | 258.3 | 0.84 | 15 | 159(72) |
| 5500−14 | 355.6(14") | 381(15") | 88.9 | 215.9 | 292.1 | 311.1 | 101.6 | 203.2 | 309.1 | 0.99 | 15 | 170(77) |
| 5500−16 | 406.4(16") | 432(17") | 127.0 | 241.3 | 342.9 | 361.9 | 127.0 | 228.6 | 359.9 | 1.13 | 15 | 183(83) |
| 5500−18 | 457.2(18") | 483(19") | 127.0 | 292.1 | 393.7 | 412.7 | 127.0 | 279.4 | 410.7 | 1.28 | 15 | 200(91) |
| 5500−20 | 508.0(20") | 533(21") | 152.4 | 317.5 | 444.5 | 463.5 | 152.4 | 304.8 | 461.5 | 1.43 | 15 | 216(98) |
| 5500−22 | 558.8(22") | 584(23") | 177.8 | 342.9 | 495.3 | 514.3 | 177.8 | 330.2 | 512.3 | 1.58 | 15 | 220(100) |
| 5500−24 | 609.6(24") | 635(25") | 177.8 | 393.7 | 546.1 | 565.1 | 177.8 | 381.0 | 563.1 | 1.73 | 15 | 216(98) |
| 5500−26 | 660.4(26") | 686(27") | 203.2 | 419.1 | 596.9 | 615.9 | 203.2 | 406.4 | 613.9 | 1.88 | 15 | 216(98) |
