Selection / Key to Model Number

Selection of Rotary Damper and Vane Damper

1) If the rotating shaft and the damper's axis are directly connected, the approximate torque can be calculated based on the following equation if the lid size and the weight are known.

fig

Using the above equation, determine the maximum torque generaged immediately prior to the closing of the lid. Use a prototype to confirm its performance in an actual machine, and determine the torque required. Fine adjustment of the torque can be done by varying the viscosity of the oil inside the damper.

fig

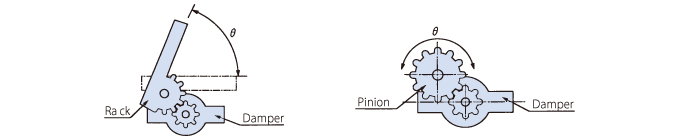

2) If the damper's rotating shaft and the lid's rotating shaft are connected by a lever or a gear, the results of the aforementioned torque calculation will vary according to the lever ratio or gear ratio. If the gear ratio is 1:n, a damper torque that is n times the regular damper torque will be required.

fig

There is no exact method for determining whether a damper is suitable for the application or not. In the event that closing time is chosen as a factor, an apparent damper effect can be observed if it takes 2 seconds or longer for the lid to fully close after it is allowed to free-fall from a 60˚ angle. However, it is ultimately up to the user as to whether the damper is suitable for the application or not.

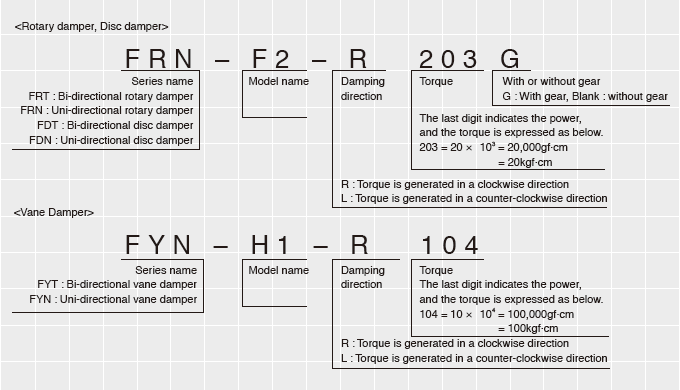

Key to Model Number

fig
