FHD-A1 Series
RoHS Compliant

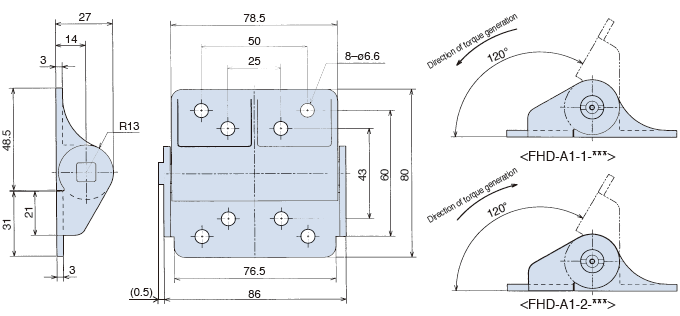

fig

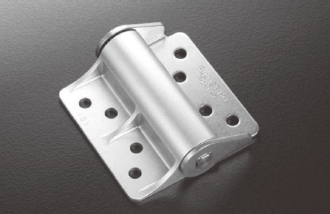

Hinge Damper [Uni-Directional] Fixed

Specification

Model Max. torque Max. reverse torque
FHD-A1-1-503 5N•m
(50kgf•cm) 		0.6N•morlower
(6kgf•cmorlower)
FHD-A1-2-503
FHD-A1-1-104 10N•m
(100kgf•cm)		 1N•morlower
(10kgf•cmorlower)
FHD-A1-2-104
  • Max. angle / 120˚
  • Operating temperature / –5～50˚C
  • Weight / 410g
  • Main body material / Zinc die-cast (ZDC) + silver coating
  • Hinge material / SUS304
  • Oil type / Silicone oil
fig

How to Use the Damper

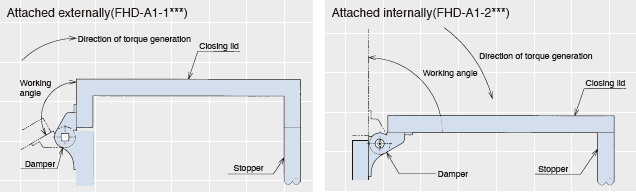

  1. There are two ways to attach the damper, as shown below.
    2. fig
  2. This damper is only for horizontal application. Please do not use this damper for vertical application.

Damper Characteristics

  1. Temperature characteristics
    Damper characteristics vary according to the ambient temperature. In general, the damper characteristics become weaker as the temperature increases, and become stronger as the temperature decreases. This is because the viscosity of the oil inside the damper varies according to the temperature. When the temperature returns to normal, the damper characteristics will return to normal as well.
    2. fig
  2. The working angle of the hinge is 120˚.
    Operating the hinge beyond this angle will cause damage to the hinge. Please ensure that an external stopper is in place.
