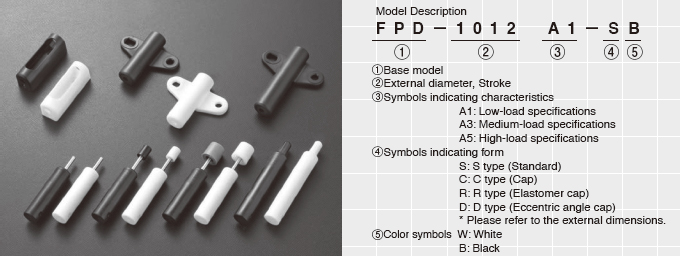

| Model | Load [kg] |
Max. absorption energy [J (kgf·m)] |
Speed range [m/s] |
Cylinder cap colour |
|---|---|---|---|---|
| FPD-1012A1 | 1 | 0.5 (0.05) | 0.5 or lower | Black |
| FPD-1012A3 | 3 | 0.8 (0.08) | 0.5 or lower | White |
| FPD-1012A5 | 5 | 1.0 (0.10) | 0.5 or lower | Blue |

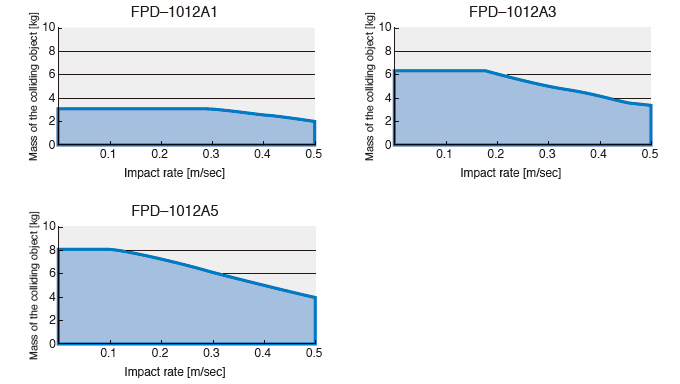

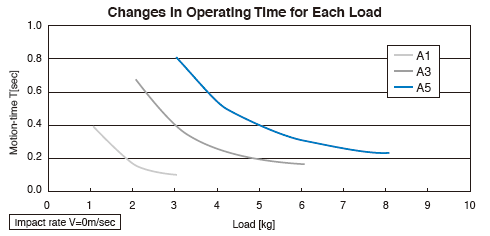

*Please refer to next page for motion time at each load.

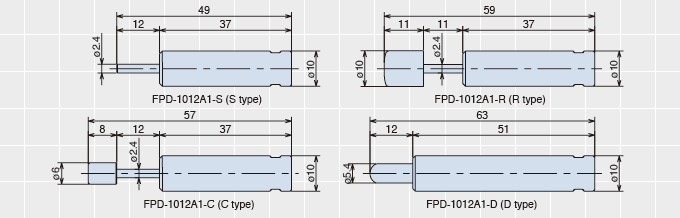

| Stroke (S/C/D type) mm | 12 | Mass g | S type=4.5g, C type=5.0g, R type=5.7g, D type=6.0g |
| Stroke (R type) mm | 11 | Main unit material | Resin |
| Recovering power of the piston rod N (kgf) | 3 (0.3) or less | Operating temperature °C | 5~40°C |

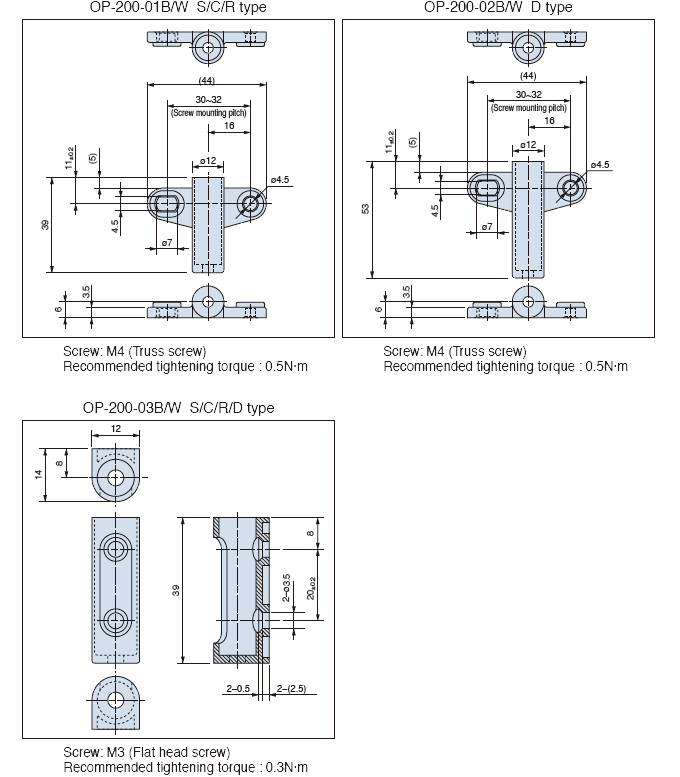

*These adaptors are dedicated for FPD-1012A series
*They make it easy to install absorbers.
*There are 2 colors: white and black.
*Material : Polyacetal (POM)
*Do not use this product without carefully reading the attached owner's manual.
*Use with an external stopper.
*Ensure that sufficient mounting strength is secured for this product
*2 or more of this product can be used in parallel.
*Do not use this product in a vacuum or a location where it may come in contact with oil.
*Ensure that an eccentric load is not applied to the soft absorber.
*Do not pull the piston rod of the soft absorber.
(This will cause air to get inside the soft absorber, causing ineffective stroke, abnormal sounds, and other damage to the soft absorber.)
*The difference between the speed of stroke and return of piston rod might influence the durability of the damper. So, please confirm sufficient performance on actual machine before use.
